HexDocker Development Guide V1.0

Preparation Materials

• Official Login Tutorial: Docker Login

• Official Logout Tutorial: Docker Logout

Pushing & Pulling Images

• Official Push Tutorial: Docker Push Guide

• Official Pull Tutorial: Docker Pull Guide

Docker User Group Configuration

• Official User Group Setup: Docker Post-Installation Guide

NVIDIA Container Toolkit

• Official Installation Guide: NVIDIA Container Toolkit Setup

Saving & Uploading Images

Uploading an Image (Example: my_docker_noetic_basic)

1. Log in to Docker Hub using the official login guide.

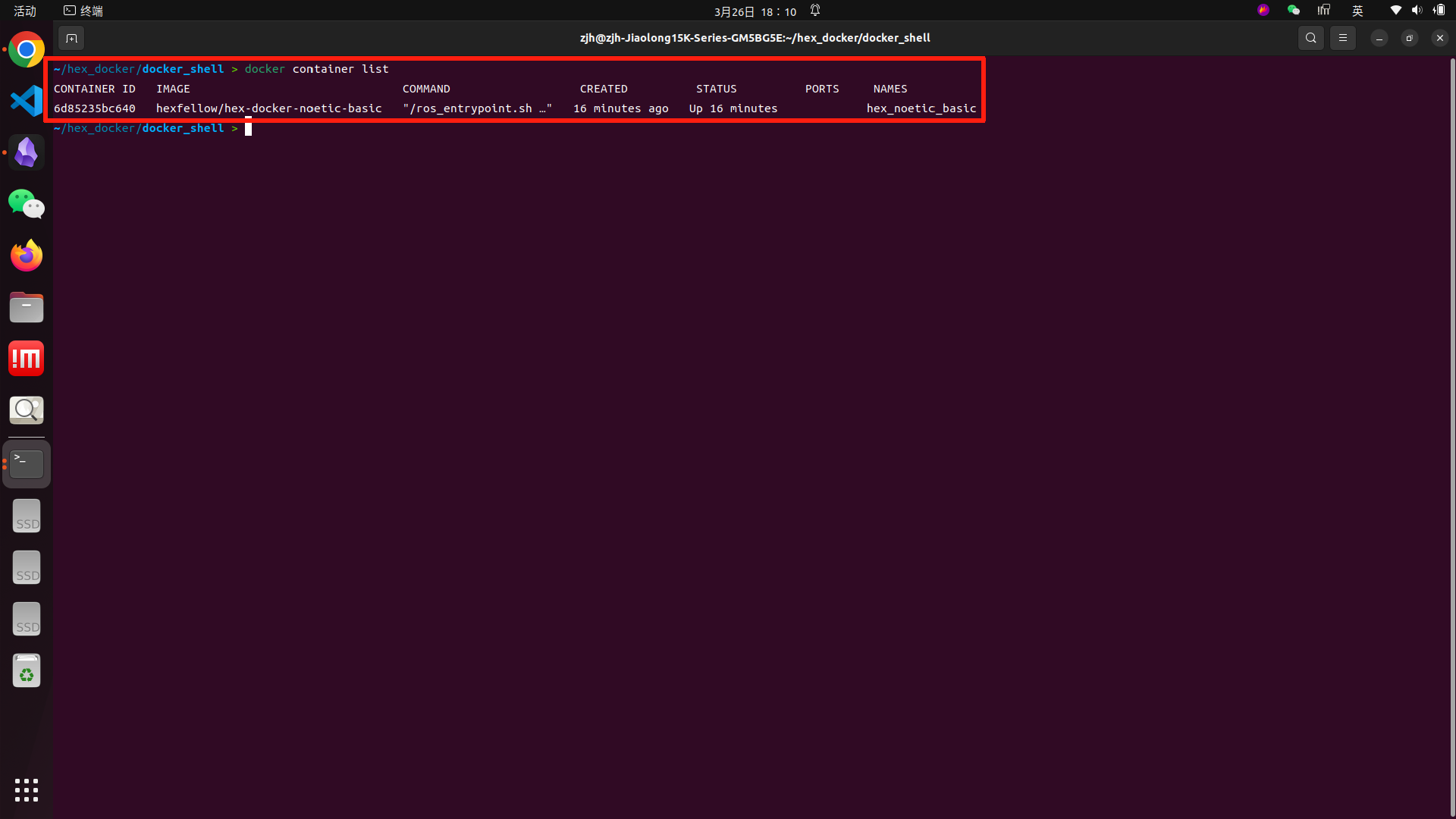

2. Find the target container ID:

   docker container list



   The target container ID here is 6d85235bc640.

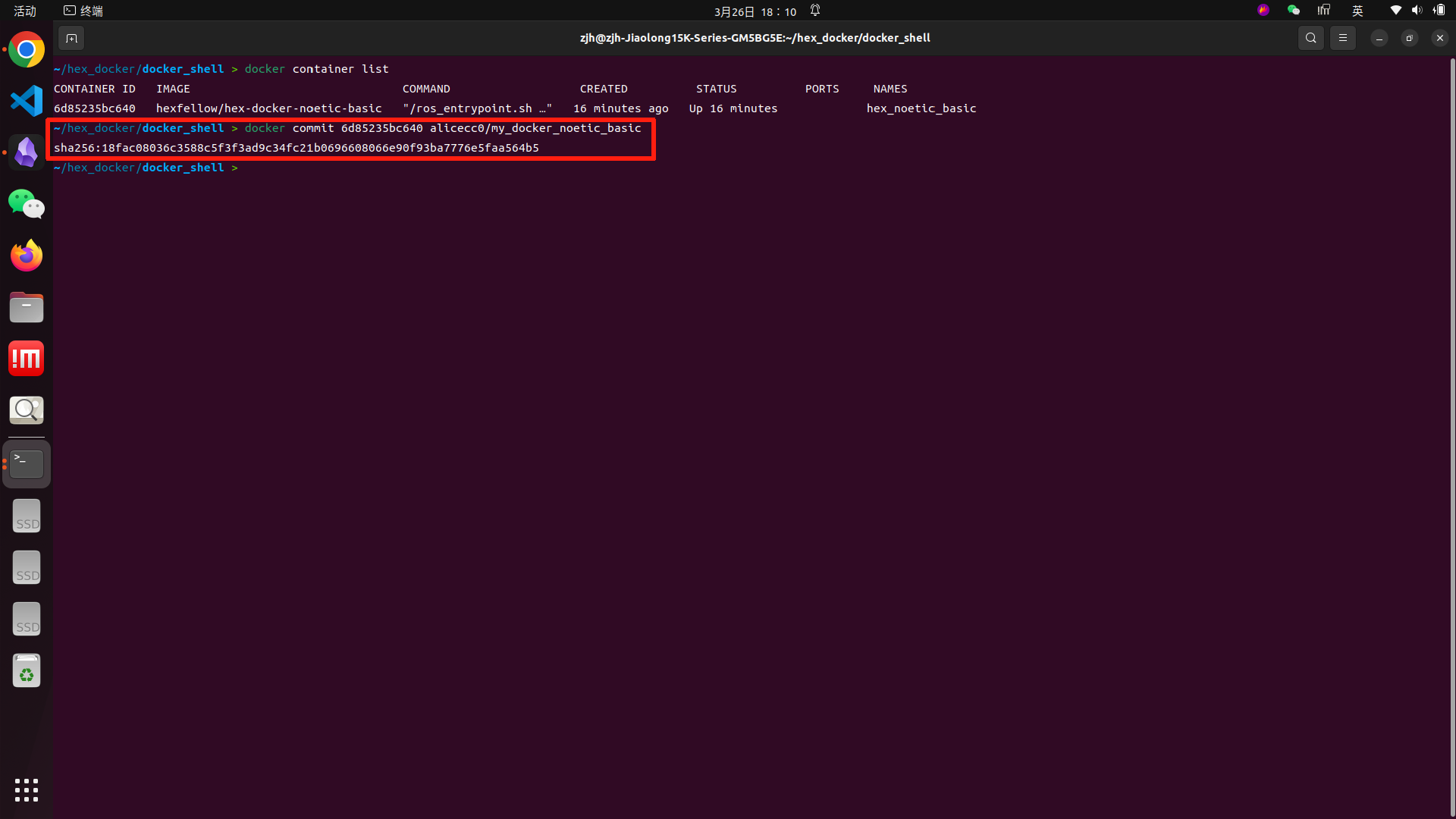

3. Commit the container to an image:

   docker commit <container_id> <user_name>/<image_name>

   Example (username: alicecc0, image name: my_docker_noetic_basic):

   docker commit 6d85235bc640 alicecc0/my_docker_noetic_basic

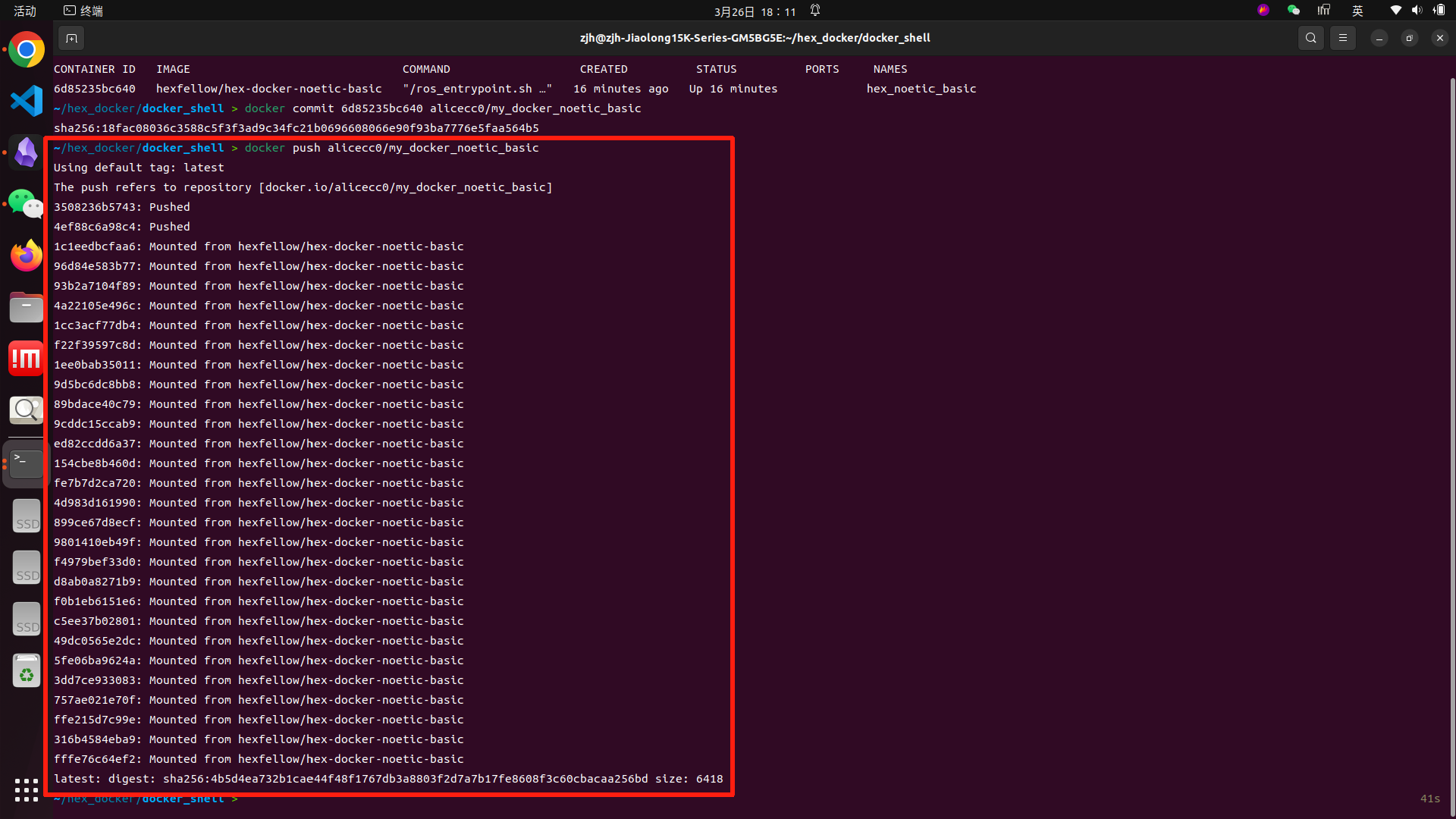

4. Push the image to Docker Hub:

   docker push <user_name>/<image_name>

   Example:

   docker push alicecc0/my_docker_noetic_basic



Saving an Image (Example: hex_noetic_basic)

1. Find the container ID:

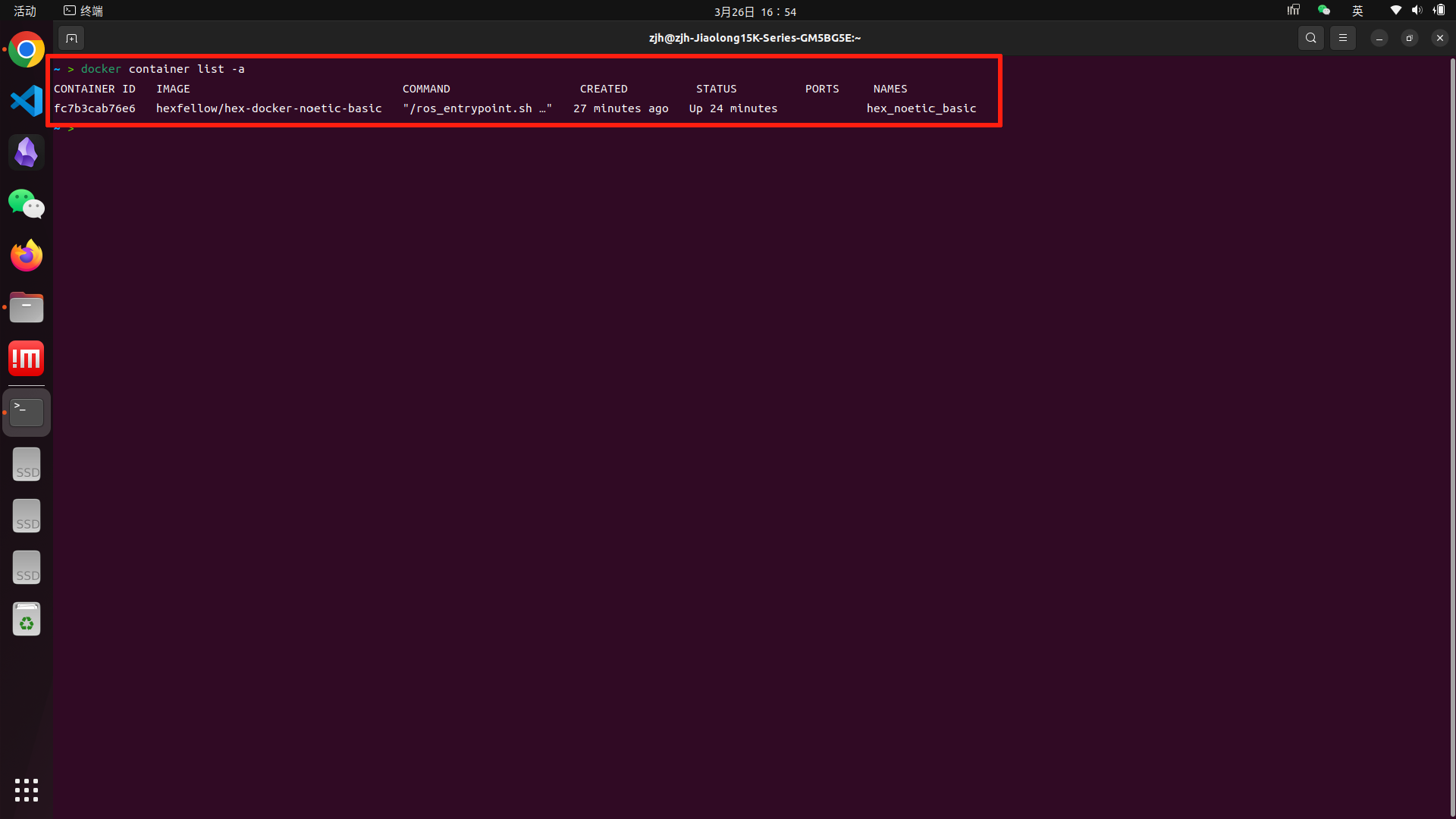

   docker container list -a

   Example output:



   The target container ID here is fc7b3cab76e6.

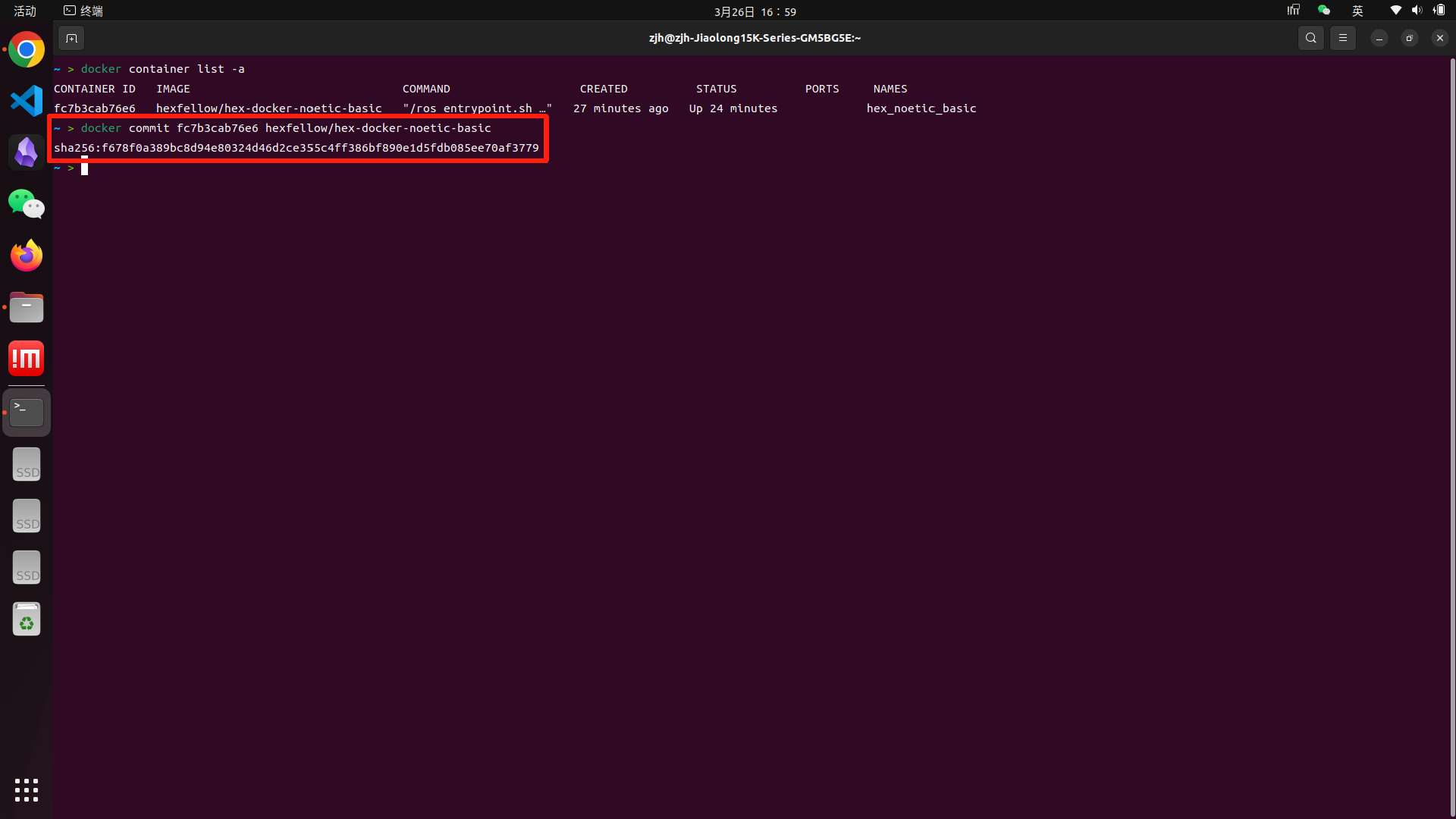

2. Commit the container to an image:

   docker commit fc7b3cab76e6 hexfellow/hex-docker-noetic-basic

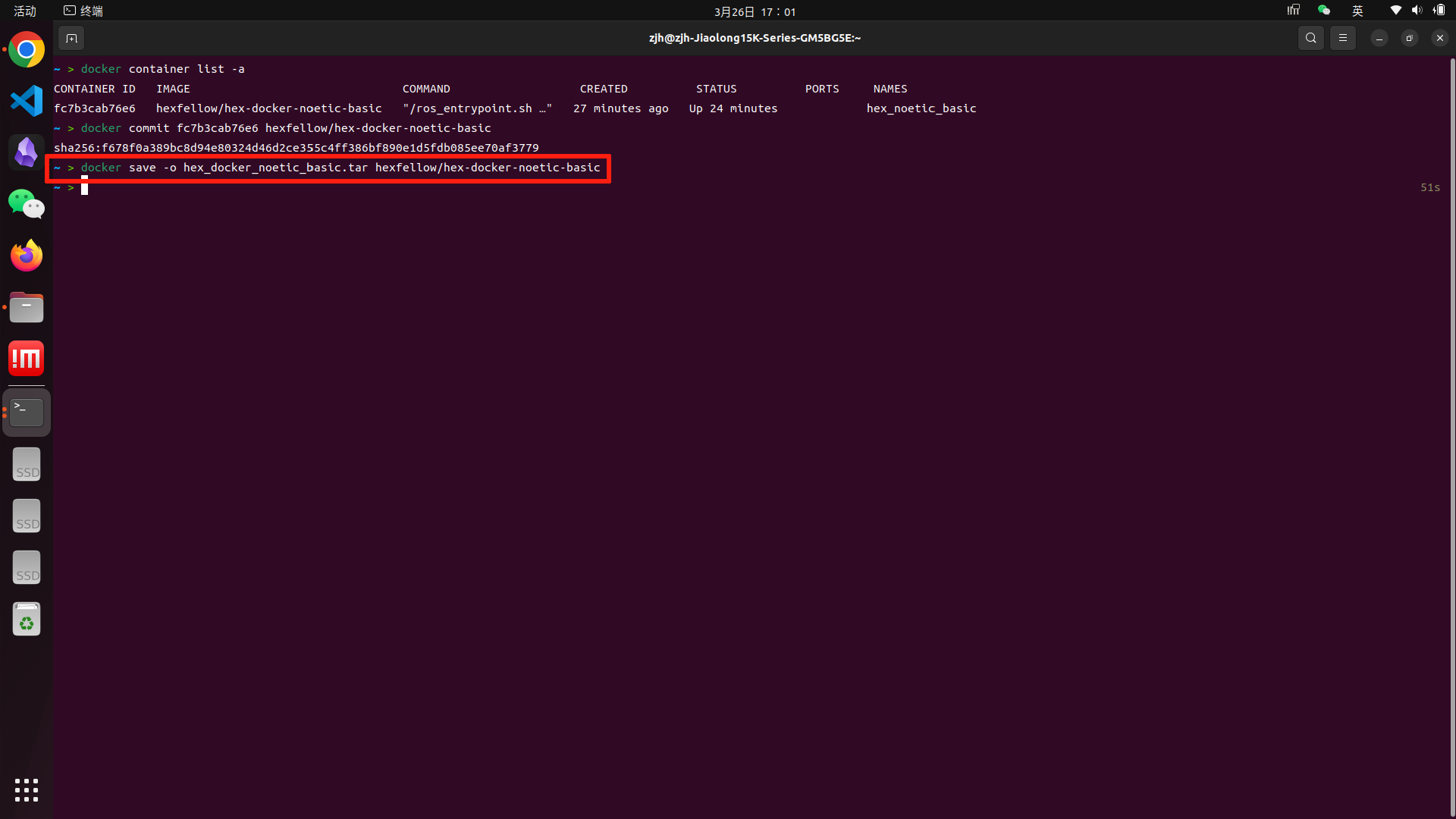

3. Save the image to a .tar file:

   docker save -o hex_docker_noetic_basic.tar hexfellow/hex-docker-noetic-basic

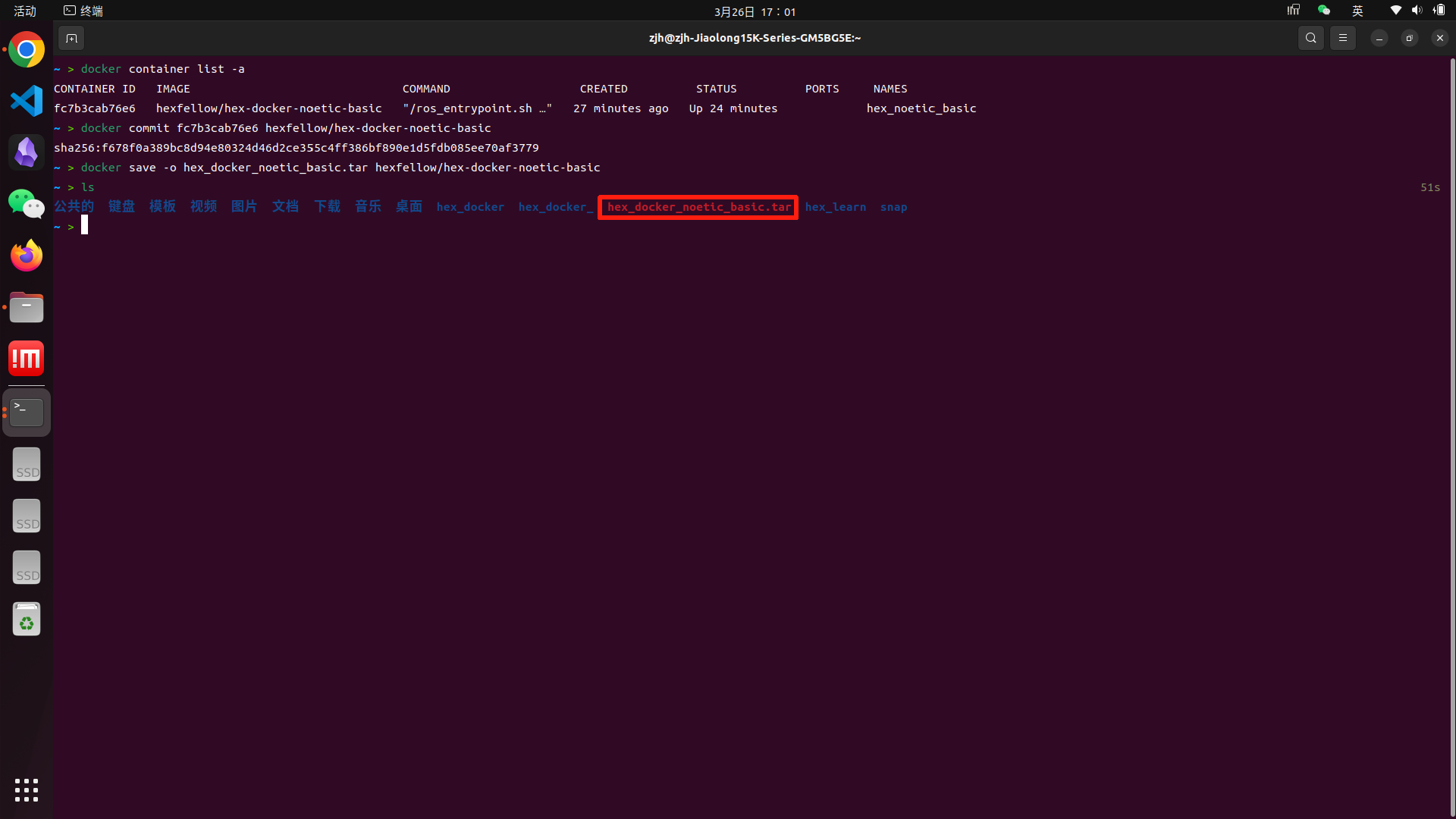

4. Verify the saved file:

   ls



HexDocker Preparation

If you wish to use our image and start running it with our startup script, please watch this section.

Directory Setup

Create the following directory structure (skip if you are a HEXFELLOW product user):

~/hex_docker/
├── application
│   ├── catkin_ws
│   │   └── src
│   └── git_source
└── docker_shell

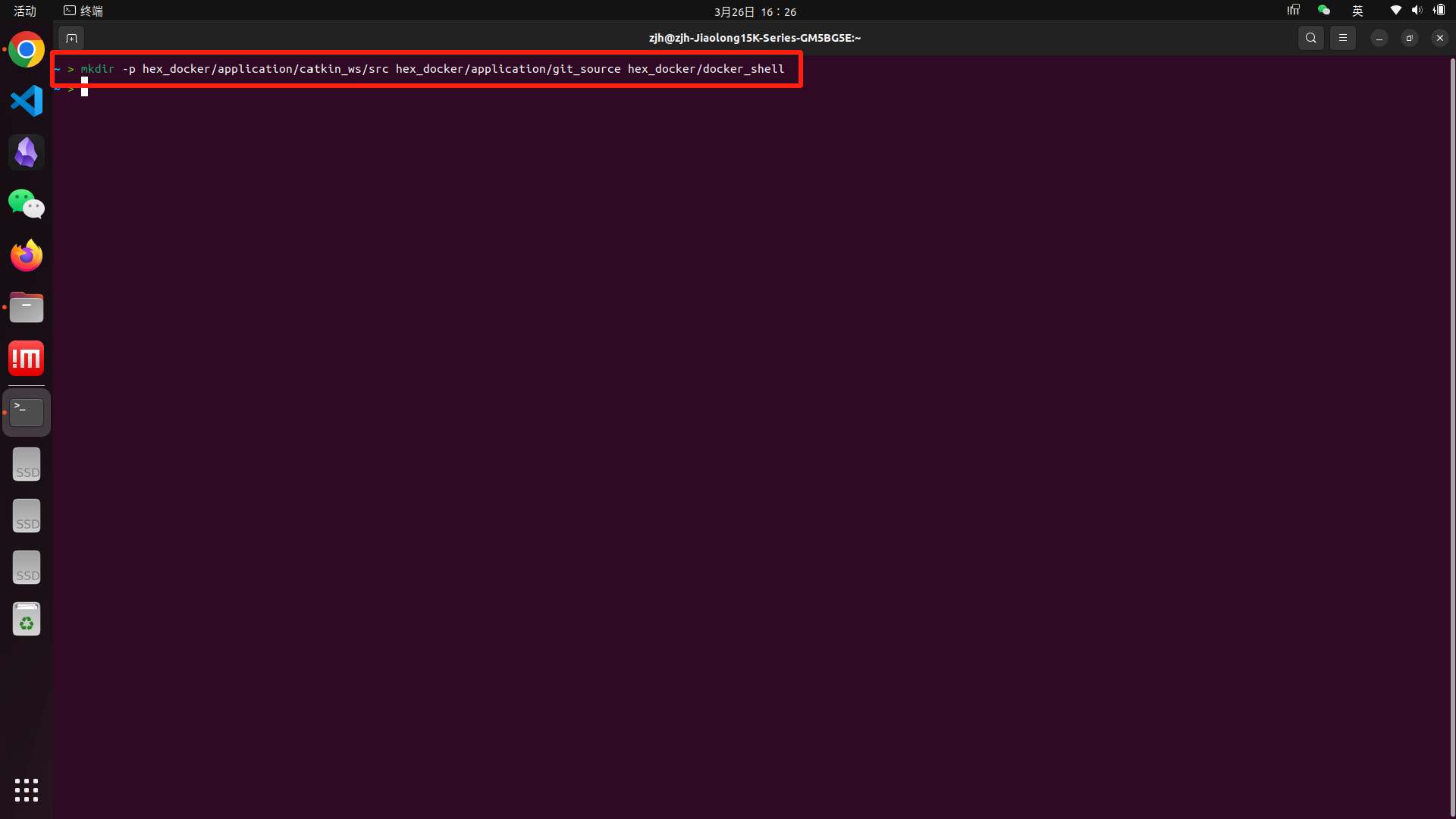

The command as:

mkdir -p hex_docker/application/catkin_ws/src hex_docker/application/git_source hex_docker/docker_shell

Script Preparation (Example: hex_noetic_basic)

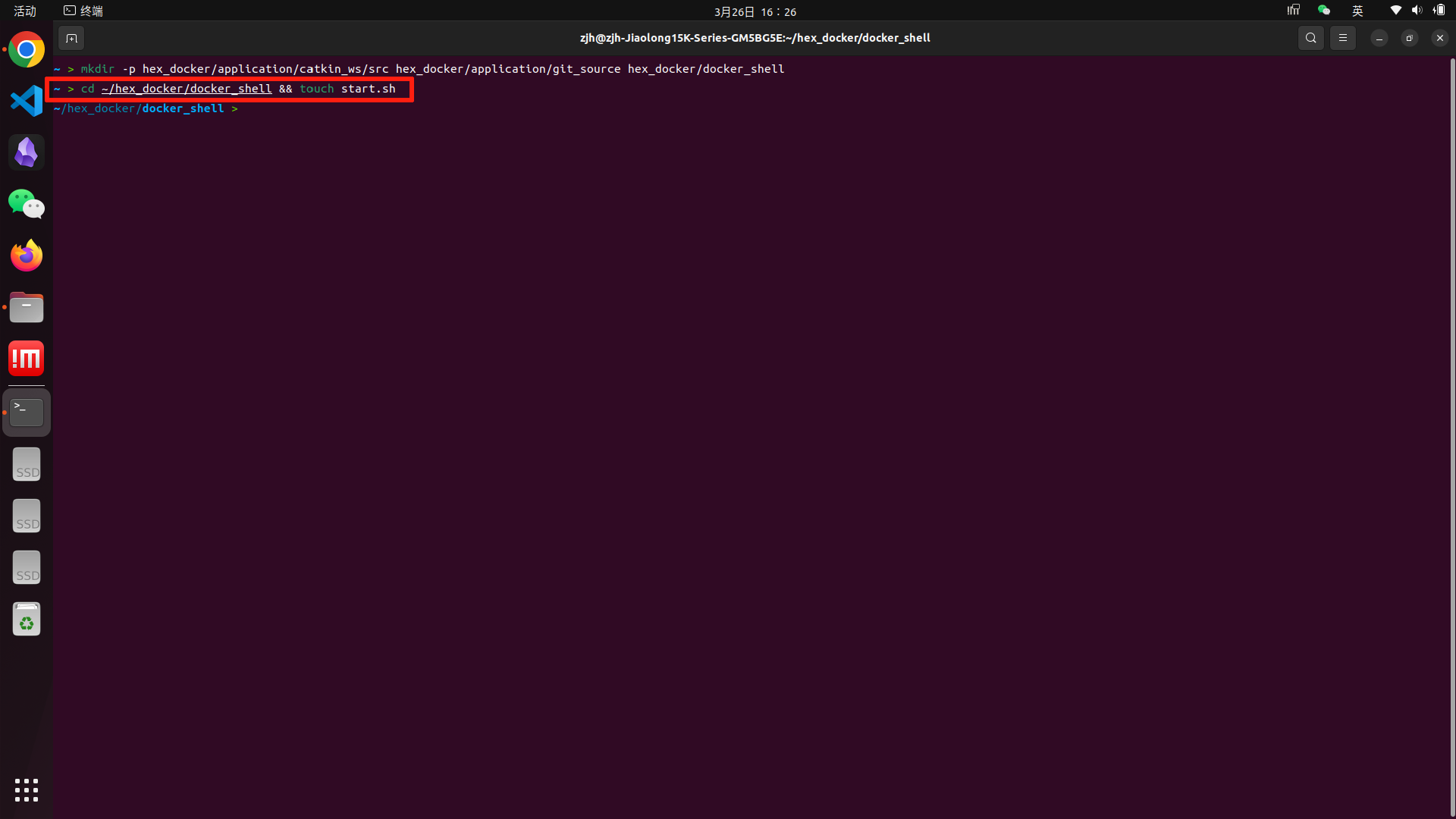

1. Create a start.sh script in the docker_shell directory:

cd ~/hex_docker/docker_shell && touch start.sh

1. Add the following content to start.sh:

#!/usr/bin/env bash

HOST_USER=$(whoami)
SHELL_DIR=$(dirname "$0")
CATKIN_DIR=$SHELL_DIR/../application/catkin_ws
GIT_DIR=$SHELL_DIR/../application/git_source

CURRENT_DIR=$(pwd)
cd $SHELL_DIR

docker run -dit \
  --name=hex_noetic_basic \
  --net=host \
  --ipc=host \
  --runtime=nvidia --gpus all \
  -e NVIDIA_DRIVER_CAPABILITIES=display,compute \
  -e DISPLAY=$DISPLAY \
  -e QT_X11_NO_MITSHM=1 \
  -e XDG_RUNTIME_DIR=/run/user/$(id -u $HOST_USER) \
  --privileged \
  -v /dev:/dev:rw \
  -v /tmp/.X11-unix:/tmp/.X11-unix:rw \
  -u $(id -u $HOST_USER):$(id -g $HOST_USER) \
  -v /run/user/$(id -u $HOST_USER):/run/user/$(id -u $HOST_USER):rw \
  -v ${CATKIN_DIR}:/home/hexfellow/catkin_ws:rw \
  -v ${GIT_DIR}:/home/hexfellow/git_source:rw \
  -w /home/hexfellow \
  hexfellow/hex-docker-noetic-basic

cd $CURRENT_DIR
