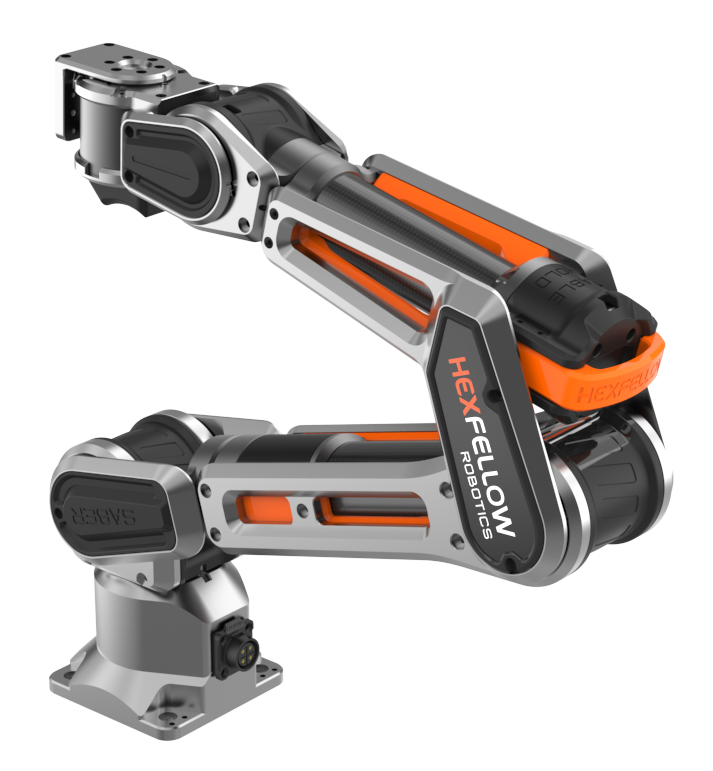

Saber-H7X

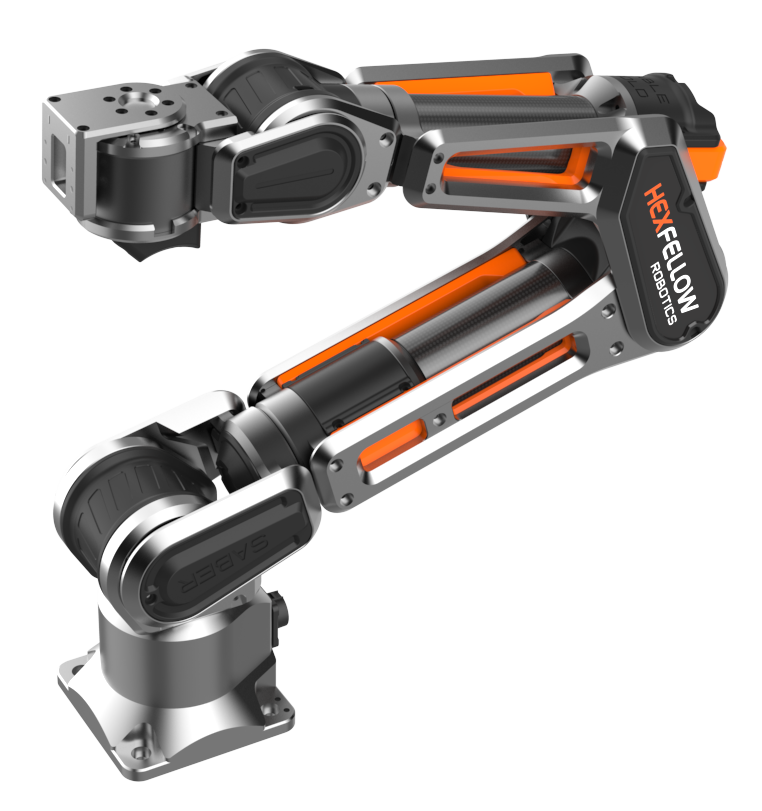

SABER is a quasi-industrial robotic arm designed for embodied intelligence and lightweight scenarios. The arm uses harmonic and planetary gearboxes with integrated motors and supports power-off self-locking for safety. The series includes two types: D6X, a 6-axis version suitable for desktop or platform use, and H7X, a 7-axis version suitable for humanoid robots.
Safety Instructions
Important Safety Information
- Ensure the device is in a safe, open environment with no load during initial startup. Follow the operating instructions and test all functions. If issues arise, contact service personnel.
- Before activating the robotic arm, ensure it is in the startup position and the emergency stop switch is off.
- Confirm the device's voltage, power, and installation parameters before use. Issues caused by exceeding parameters are not covered under warranty.
- Assess the IP rating, temperature, and suitability of the operating environment. Problems caused by harsh conditions are not covered under warranty.
- The device does not provide stable collision, drop, or biological proximity warnings. Conduct safety evaluations for integrated products and ensure compliance with regulations and certifications to avoid major safety hazards.
- Read maintenance requirements to prevent irreversible damage from incorrect operations, such as over-discharging the battery or lack of lubrication causing wear.
- For first-time use, place the device in a safe, open environment with no load and follow the startup instructions, testing all functions. Contact service personnel if issues arise.
- If the device malfunctions or an accident occurs, immediately use the emergency stop or power off to prevent further damage and contact technical personnel. Do not disassemble it yourself. Note: Damage caused by user disassembly, modification, improper use, or force majeure is not covered under warranty. The product is not liable for safety incidents caused by user integration. Users must assess risks and conduct reliability tests.
Technical Specifications

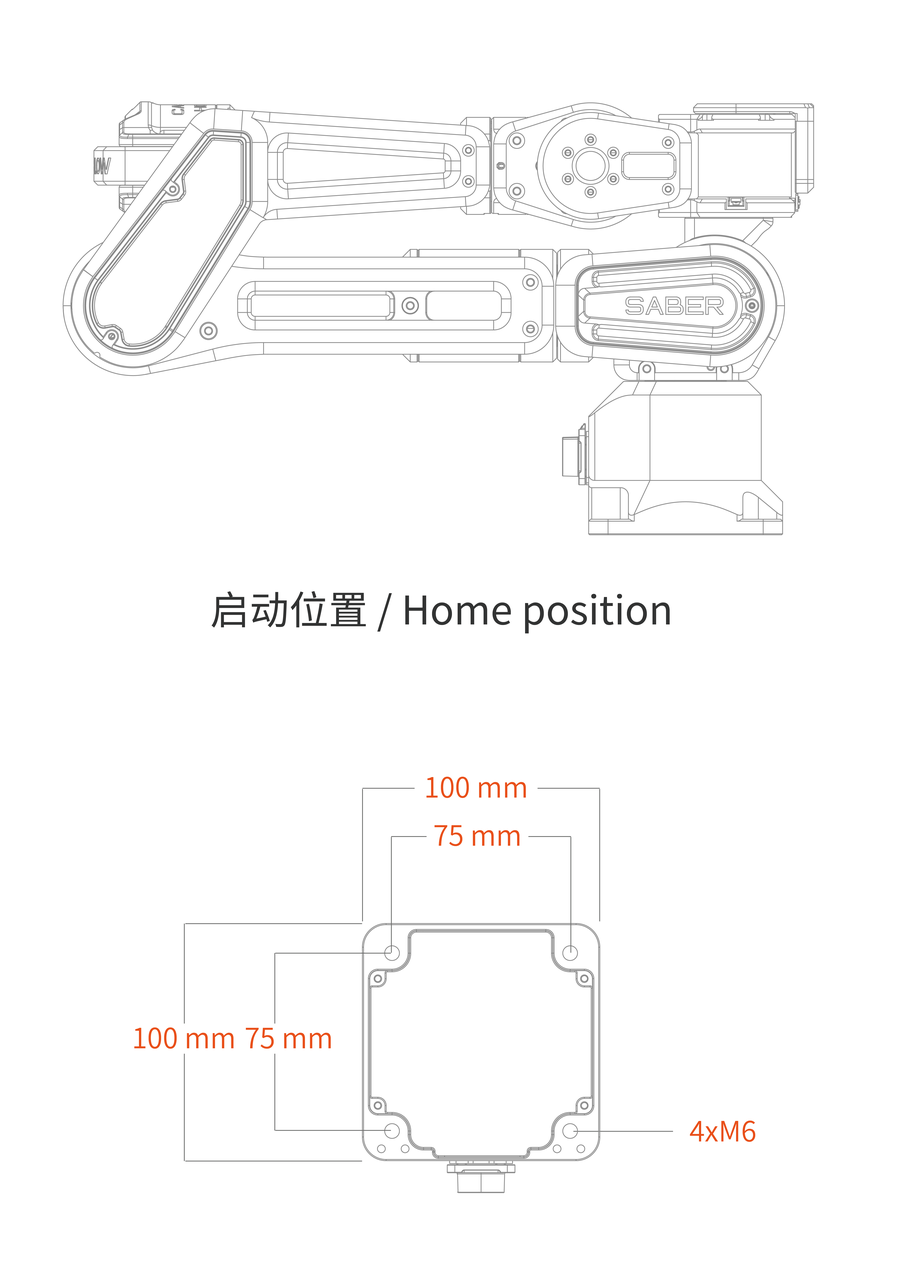

Robot Dimensions
Specification Table
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degrees of Freedom | 7 axes | Operating Voltage | 48V |
| Weight | 5kg | Communication | CAN / Ethernet (external converter) |
| Working Radius | 650mm | Max Power | 230W |
| Max Load | 3kg | Auxiliary Function | Joint power-off self-lock |
| Repeatability | ±0.1mm | Operating Environment | 0~45° |
Joint Motion Range
| Joint Number | J1 | J2 | J3 | J4 | J5 | J6 | J7 |
|---|---|---|---|---|---|---|---|
| Motion Range | ±170° | -90°~120° | ±170° | -22~180° | ±170° | ±90° | ±90° |
| Max Speed | 150°/s | 150°/s | 150°/s | 300°/s | 720°/s | 720°/s | 720°/s |
| Gearbox | Harmonic | Harmonic | Harmonic | Harmonic | Planetary | Planetary | Planetary |
| Gear Ratio | 100 | 100 | 100 | 50 | 10 | 10 | 10 |
| Encoder Resolution | 19bits | 19bits | 19bits | 19bits | 14bits | 14bits | 14bits |
| Safety Protection | Brake | Brake | Brake | Brake | None | None | None |
Quick Start
First, please read the Robotic Arm Controller thoroughly.
Start Using API to Control the Robotic Arm
Refer to API Control.
