Ark Unpack and Assembly
Items in the Box
The Ark standard package includes:
- Ark chassis body
- Battery
- Charger
- Aviation connector cable
- Remote control and receiver
Assembly
Ark installation is very simple. Just connect the battery cable and tighten the battery screws.
1. Ensure the power switch is in the off position. The switch (Main Power Switch) should be vertical, as shown in the figure.

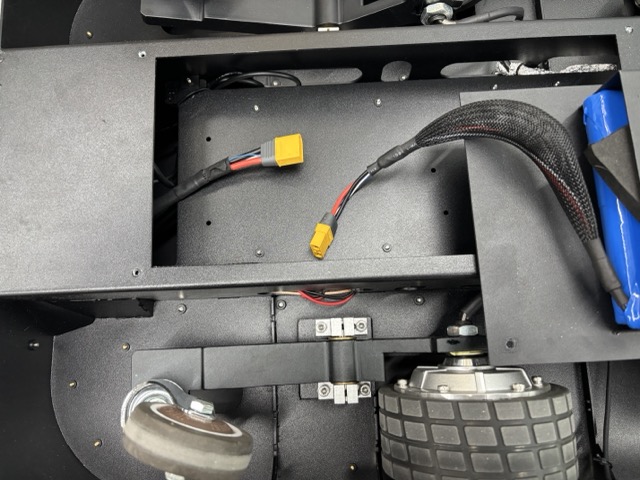

2. Connect the battery to the chassis interface.

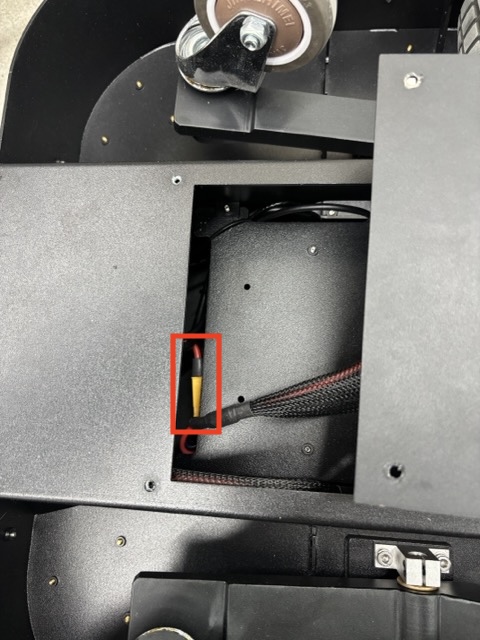

3. Ensure the connector part is outside the battery compartment to prevent the battery and connector from being squeezed during battery installation. Place the battery into the battery compartment. Violent operation is strictly prohibited.

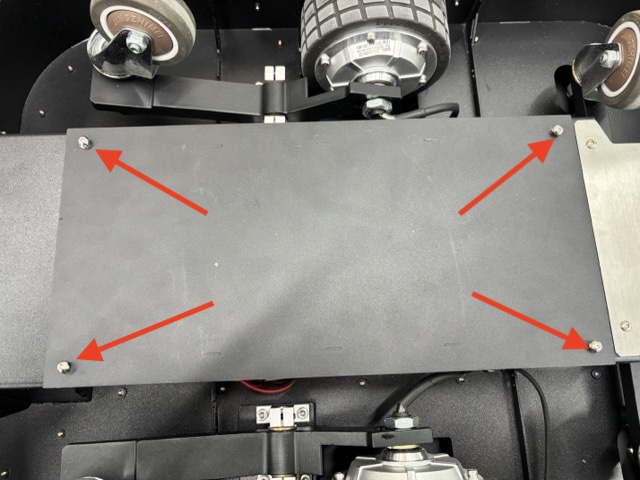

4. Tighten the battery screws.
5. Ensure the emergency stop switch is released
Since the emergency stop switch may be accidentally triggered during transportation, it is necessary to ensure that the emergency stop switch is released. The machine will not start if the emergency stop switch is pressed.
We use a self-locking emergency stop switch, so you only need to rotate the emergency stop switch. If it was not previously pressed, nothing will happen. If it was previously pressed, the emergency stop switch will pop out automatically after rotating to the correct position.
