Maver-L4
Inspired by the open-source TidyBot++ design

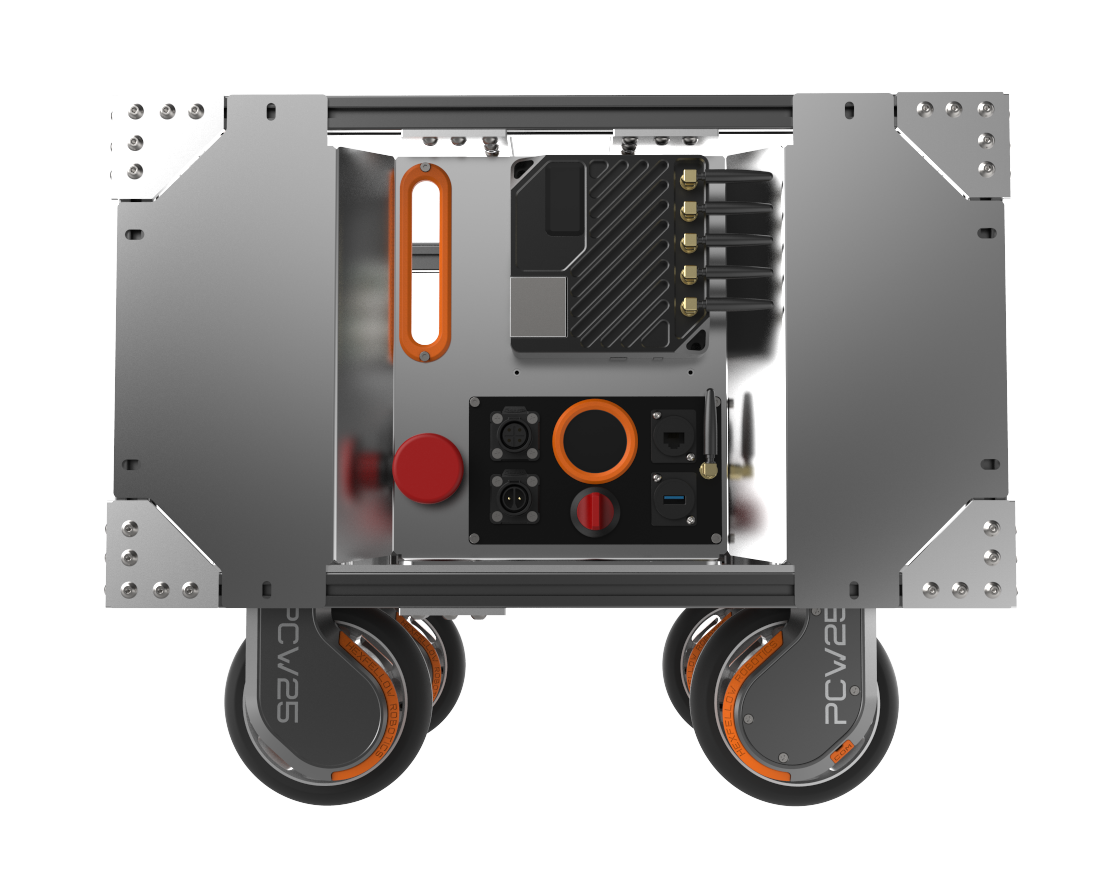

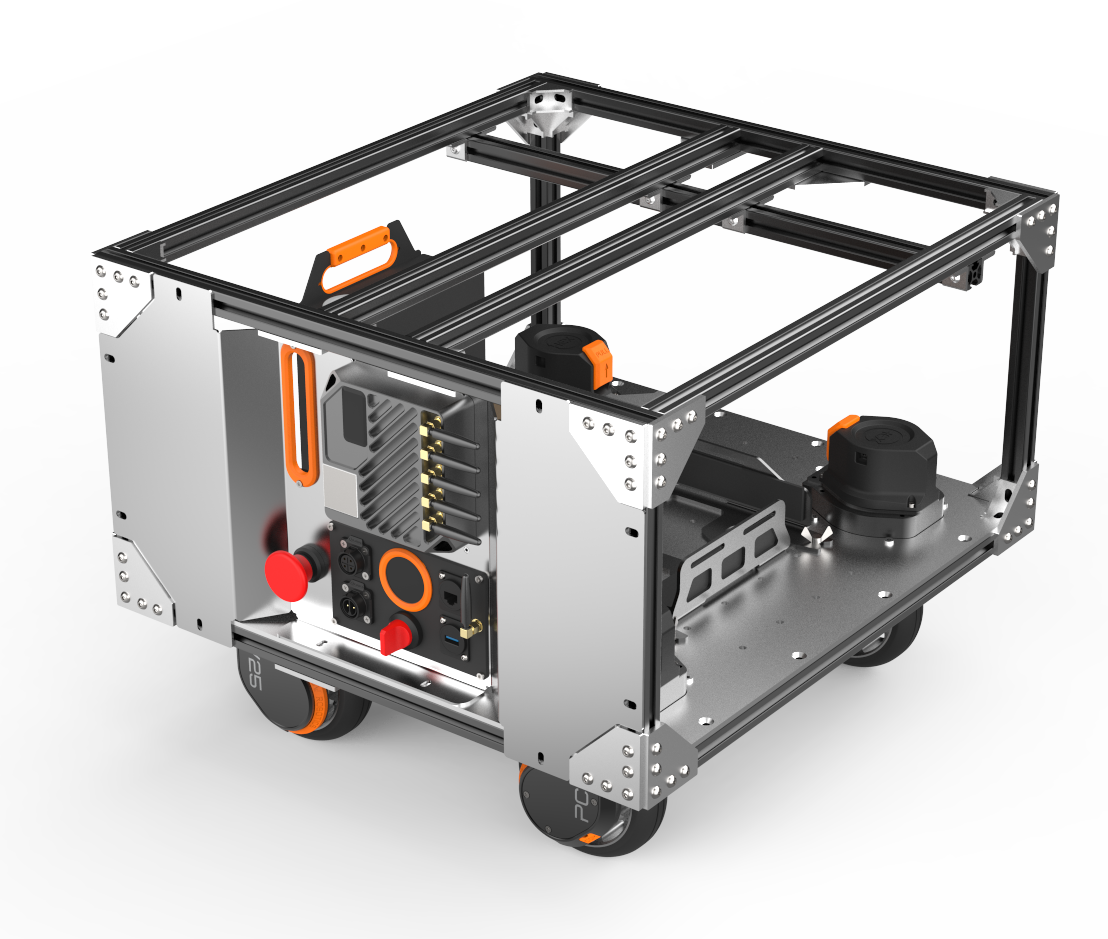

The Maver-L4 is a open source four-wheel steering omnidirectional mobile chassis. This chassis uses the PCW-25 module, with a built-in IMU and attitude fusion module, enabling precise trajectory tracking. It adopts a aluminum frame structure, supporting custom size and removable battery design for easy replacement, designed for early development and prototype verification scenarios.
Maver-L4 integrates an IMU for odometry fusion, achieving high precision in dead reckoning. Odom vs. motion capture comparison video:
Safety Instructions
Important Safety Information
- It is strictly prohibited to use the device during charging.
- Confirm the device's operating voltage, power, and installation parameters before use. Issues caused by exceeding these parameters are not covered under warranty.
- Assess the IP rating, temperature, and suitability of the environment. Issues arising from harsh conditions are not covered under warranty.
- This device does not provide collision, fall, or proximity warnings. Conduct safety evaluations for integrated products and ensure compliance with relevant regulations and certifications to avoid major safety hazards.
- Read maintenance requirements to prevent irreversible damage from incorrect operations, such as battery over-discharge, low tire pressure causing hub damage, or lack of lubrication leading to axle wear.
- For first-time use, place the device in a safe, open area without loads. Follow the operation instructions and test all functions. Contact customer service if issues arise.
- In case of abnormalities or accidents, use the emergency stop or power off immediately to prevent further damage. Contact technical support and do not disassemble the device yourself. Note: Damage from unauthorized disassembly, modification, misuse, or force majeure events is not covered under warranty. The product is not liable for safety incidents with user-integrated devices. Users must conduct risk and reliability assessments.
Charger Usage Instructions
- Lithium battery chargers provide different voltages depending on the number of cells: common specifications are 7 cells (29V), 6 cells (25V), and industry-standard 13 cells (54V). Choose the correct charger, preferably the one provided with the device. Contact customer service if needed.
- Check that the charging voltage is correct; it is indicated on the device's nameplate.
- Ensure charging is supervised; disconnect power when unattended.
- Start charging after device alignment, and do not use the device while charging.
- Keep the charger and device away from bedrooms, flammable materials, and ensure they remain dry.
- The charger uses a 220V AC power input; ensure stable input voltage.
- Do not exceed 8 hours of continuous charging. Stop immediately if the charger overheats.
Technical Specifications
Parameter Table
| Parameter | Data | Parameter | Data | |
|---|---|---|---|---|
| Applicable Scene | Indoor/Outdoor Non Off-road | Onboard Module | 9-axis IMU, Attitude Fusion Module | |
| Dimensions (L×W×H) | 508×508×409 mm | Working Time | Depending on actual conditions 3~6 h | |
| Spin Outer Radius | 359 mm | Battery Specs | 48V 10Ah | |
| Ground Clearance | 120 mm | Charging Time | 3~4 h | |
| Unloaded Mass | 21 kg | Charger | AC 220V/110V External Charger | |
| Rated Load | 80 kg | Power Output | 48V 10A Direct Battery Output | |
| Maximum Speed | 2 m/s | Communication Interface | Gigabit Ethernet + WiFi + USB | |
| Maximum Climbing Angle | 10° | Protection Level | IP20 | |
| Right-angle Obstacle | Unloaded 30 mm | Operating Temperature | 0~60°C | |
| Motion Mode | 4 Offset Steering Wheel System | Suspension | None | |
| Brake | Electronic Brake | |||
Quick Start
First, please read the Chassis Controller completely.
Start Using API to Control the Chassis
Warning
- It is strictly prohibited to use the device during charging.
Refer to API Control.
